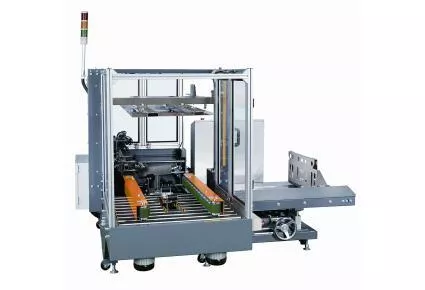

Reliable and robust automatic case erector for different sizes
- form the carton box then bottom tape the cartons
- manual adjustment – left or right operation
- reliable manufacturer from Taiwan
Product Description
Specification
| Model Type | S | M | L |
| Power Supply | 3 Phase, 220/380/415/440V | 3 Phase, 220/380/415/440V | 3 Phase, 220/380/415/440V |
| Air supply | 6kgf/cm (137.64L/min.)
85.3 (lb/in2) |
6kgf/cm (137.64L/min.)
85.3 (lb/in2) |
6kgf/cm (137.64L/min.)
85.3 (lb/in2) |
| Infeed Side | Left / Right
(Please advise when ordering) |
Left / Right
(Please advise when ordering) |
Left / Right
(Please advise when ordering) |
| Tape Head | C-1 | C-1 | C-1 |
| OPP Tape | 2″/3″
(Please advise when ordering) |
2″/3″
(Please advise when ordering) |
2″/3″
(Please advise when ordering) |
| Min.
Sealing Size (LxWxH) |
2″OPP:
150 x 110 x 110 (mm) 5.9 x 4.3 x 4.3(in) 3″OPP: 150 x 135 x 110 (mm) 5.9 x 5.3 x 4.3 (in) |
2″OPP:
250 x 200 x 120 (mm) 9.8 x 7.8 x 4.7 (in) 3″OPP: 250 x 225 x 120 (mm) 9.8 x 8.8 x 4.7 (in) |
2’OPP:
350 x 300 x 250 (mm) 13.8 x 12 x 9.8 (in) 3′ OPP: 350 x 325 x 250 (mm) 13.8 x 12.8 x 9.8 (in) |
| Max.
Sealing Size (LxWxH) |
2’/3’OPP:
350 x 300 x 300 (mm) 13.8 x 12 x 12 (in) |
2’/3’OPP:
510 x 380 x 500 (mm) 20 x 15 x 19.7 (in) |
2’/3’OPP:
600 x 450 x 500 (mm) 23.6 x 18 x 19.7 (in) |
| Tape
Overlap |
2’OPP:
60±5 (mm) 2.36±0.2 (in) 3’OPP: 40±5 (mm) 1.57±0.2 (in) |
2’OPP:
60±5 (mm) 2.36±0.2 (in) 3’OPP: 40±5 (mm) 1.57±0.2 (in) |
2’OPP:
60±5 (mm) 2.36±0.2 (in) 3’OPP: 40±5 (mm) 1.57±0.2 (in) |
| Working Table Height | 606 (mm)
23.8 (in) |
615 (mm)
24.2 (in) |
715 (mm)
28.1 (in) |
| Capacity | 9~12 boxes/min. | 9~12 boxes/min. | 7~8 boxes/min. |
| Net Weight | n/a | 820 (kg)
1807.7 (lb) |
n/a |
| Machine Size
(LxWxH) |
n/a | 2502 x 2359 x 1547 (mm)
98.5 x 92.87 x 60.9 (in) |
n/a |
Features
For all general type of corrugated boxes
Mechanical Aspect:
- Vertical seal
- Belt driven with universal bearing
- Double suction arm
- Aluminum frame and acrylic safety fence
- Easy maintenance
- Operating preference; Right Hand side or Left Hand side
- (Please advice when ordering)
Applications
OPTION:
Mechatronic Aspect:
- HMI touch panel
- Detection for failed box forming
- Detection for low-quantity of boxes
- PLC system
Mechanical Aspect:
- Safety Fences: aluminum frame with acrylic window panel
System Aspects:
- Combine with carton sealers and strapping machine to increase your packaging efficiency even more.
Special Needs:
- Stainless steel structure SUS# 304
