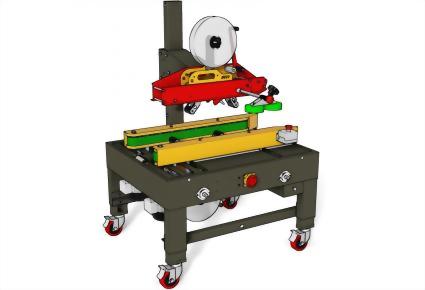

    Carton PW-542

    Ergonomic Side Driven

    Description

    • Single-pillar design with side belt drive.
    • Suitable for boxes of all general shapes.
    • Robust design, is easy to operate, and requires easy maintenance.
    • Manufactured in Taiwan with a guarantee of quality assurance.

    Product Description

    Specifications

    Power 1 Phase, 110/220V, 50/60Hz
    Tape Head C-6
    OPP 2″/3″ (Please advise when ordering)
    Min.Sealing Size

    (LxWxH)

    2′ OPP:

    >150 x 120 x 85 (mm)

    >5.9 x 4.7 x 3.3 (in)

    3″ OPP:

    >150 x 145 x 85 (mm)

    >5.9 x 5.7 x 3.3 (in)

    Max.Sealing Size

    (LxWxH)

    2′ OPP:

    ∞ x 500 x 500 (mm)

    ∞ x 19.7 x 19.7 (in)

    3″ OPP:

    ∞ x 500 x 500 (mm)

    ∞ x 19.7 x 19.7 (in)

    Tape Overlap 60±5(mm) 2.4±0.2(in)
    Working Table Height 560~760 (mm)

    22~30 (in)

    Max Loading Weight 30 (kg)

    66 (lb)

    Capacity 30 boxes/min. For box length 300mm (Belt speed 20M/min)
    Net Weight 148 (kg)

    326.3 (lb)

    Machine Size

    (LxWxH)

    967 x 946 x 1363~1563 (mm)

    38 x 37 x 53.7~61.5 (in)

    Features:

    Mechanical Aspect:

    • Manual adjustment for different box sizes
    • Single pillar: Small sized structure
    • Both side compression rollers
    • Belt driven (Left and Right Side)
    • Casters with brake
    • Roller Table

    Applications:

    Options:

    Mechatronic Aspect:

    • 60 sec. auto-stop (power saver)
    • 3 phase, 220/380/415/440V

    Mechanical Aspect:

    • Extension roller table L370/500xW530mm
    • Tape overlap 70±5mm
    • Tape overlap 95±5mm
    • customize sealing size
    • Outside diameter of OPP Tape 340mm (13.5″)

    System Aspect:

    • could combine with case erector, or case strapper

    Special Needs:

    • Stainless steel structure SUS #304
