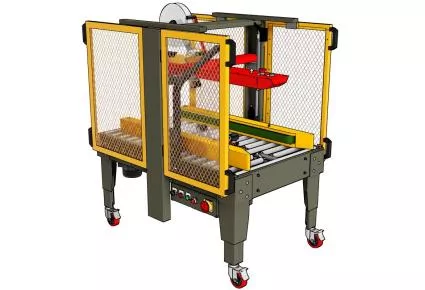

    Carton PW-555AU

    Description

    • AU: Automatic Adjustment Side Drive
    • Operational flexibility with regular and memory modes
    • Suitable for a variety of box sizes
    • Designed for heavy loads, up to 50kg (110lb)
    • Sturdy design, Easy to operate, Easy to maintain
    • Manufactured in Taiwan, Guaranteed quality

    Product Description

    Specifications

    Power 1 Phase, 110/220V, 50/60Hz
    Tape Head C-1
    OPP 2″/ 3″( Please advise when ordering)
    Min.Sealing Size

    (LxWxH)

    2″OPP:

    > 300 x 120 x 150 (mm)

    > 11.8 x 4.7 x 5.9 (in)

    3″OPP:

    > 300 x 145 x 150 (mm)

    > 11.8 x 5.7 x 5.9 (in)

    Max.Sealing Size (LxWxH) 2″OPP:

    ∞ x 500 x 500 (mm)

    ∞ x 19.7 x 19.7 (in)

    3″OPP:

    ∞ x 500 x500 (mm)

    ∞ x 19.7 x 19.7 (in)

    Tape overlap 2′ OPP: 60±5 (mm) 2.4±0.2 (in)

    3′ OPP: 40±5 (mm) 1.6±0.2 (in)

    Working table height 550~810 (mm)

    21.7~31.9 (in)

    Max. loading weight 30 (kg)

    66 (lb)

    Capacity 8 boxes/min. For box length 300mm (Belt speed 20 M/min)
    Net Weight 220 (kg)

    485 (lb)

    Machine Size

    (LxWxH)

    1319 x 930 x 1316~1576 (mm)

    52 x 36.6 x 51.8 x 62 (in)

    Features:

    Mechatronic Aspect:

    • Programmable Logic Controller (PLC)
    • Regular mode (random case sizes)
    • Memory mode (uniform case sizes)
    • Equipped with a search height sensor

    Mechanical Aspect:

    • Dual-side compression rollers
    • Top mast with cushion to prevent case jamming
    • Roller table

    Applications:

    Options:

    Mechatronic Aspect:

    • 60 sec. auto-stop (power saver)
    • 3 phase, 220/380/415/440V

    Mechanical Aspect:

    • Extension roller table L370/500xW530mm
    • Tape overlap 70±5mm
    • Tape overlap 95±5mm
    • customize sealing size
    • Outside diameter of OPP Tape 340mm (13.5″)

    System Aspect:

    • could combine with case erector, or case strapper

    Special Needs:

    • Stainless steel structure SUS #304
