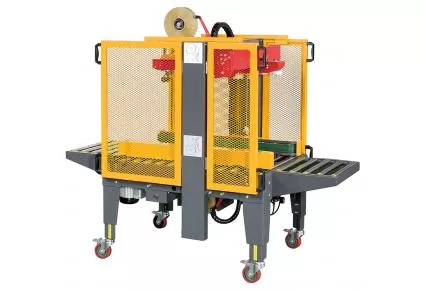

Carton PW-555AUC
Description
- AUC: Automatic Adjustment Side Drive
- Operation flexibility with regular and memory modes.
- Suitable for many different box sizes,
- Robust design, Easy to operate, Easy maintenance
- Made in Taiwan, Quality assurance.
Product Description
Specifications
| Power | 1 Phase, 110/220V, 50/60Hz |
| Tape Head | C-1 |
| OPP | 2″/ 3″( Please advise when ordering) |
| Min.Sealing Size (LxWxH) | 2″OPP:
> 300 x 120 x 150 (mm) > 11.8 x 4.7 x 5.9 (in) 3″OPP: > 300 x 145 x 150 (mm) > 11.8 x 5.7 x 5.9 (in) |
| Max.Sealing Size (LxWxH) | 2″OPP:
∞ x 500 x 500 (mm) ∞ x 19.7 x 19.7 (in) 3″OPP: ∞ x 500 x 500 (mm) ∞ x 19.7 x 19.7 (in) |
| Tape overlap | 2′ OPP: 60±5 (mm) 2.4±0.2 (in)
3′ OPP: 40±5 (mm) 1.6±0.2 (in) |
| Working table height | 550~810 (mm)
21.7~31.9 (in) |
| Max. loading weight | 30 (kg)
66 (lb) |
| Capacity | 8 boxes/min. For box length 300mm (Belt speed 20 M/min) |
| Net Weight | 230 (kg)
507 (lb) |
| Machine Size
(LxWxH) |
1319 x 933 x 1316~1576 (mm)
52 x 36.7 x 52~62 (in) |
Features:
Mechatronic Aspect:
- Programmable Logic Controller (PLC)
- Regular mode (random case sizes)
- Memory mode (uniform case sizes)
- Equipped with a search height sensor
Mechanical Aspect:
- Dual-side compression rollers
- Top mast with cushion to prevent case jamming
- Roller table
Applications:
Options：
Mechatronic Aspect:
- 60 sec. auto-stop (power saver)
- 3 phase, 220/380/415/440V
Mechanical Aspect:
- Extension roller table L370/500xW530mm
- Tape overlap 70±5mm
- Tape overlap 95±5mm
- customize sealing size
- Outside diameter of OPP Tape 340mm (13.5″)
System Aspect:
- could combine with case erector, or case strapper
Special Needs:
- Stainless steel structure SUS #304
