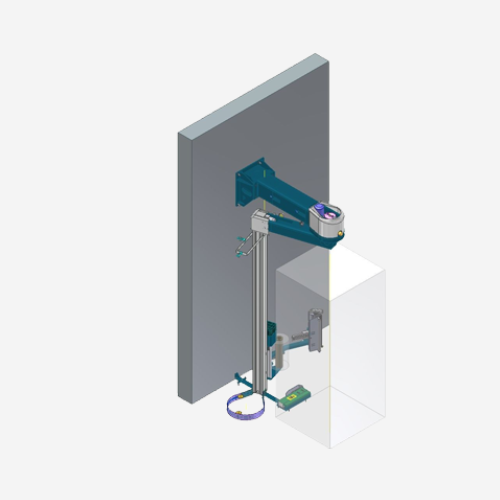

Rotowrap W LP AS
Rotowrap W LP AS
ROTOWRAP LP-AS wrapping machines are built following the high standards of all ROBOPAC machines. End-of cycle film gripping, cutting and sealing are fully automatic.
Whether in the self-standing version or the column version, ROTOWRAP LP-AS machines will effectively handle all aspects of fully automated load wrapping. These machines are unequalled for durability, with performance levels at the top of the class.
Rotowrap LP-AS machines are available with FR or PDS carriages.
Product Description
TECHNICAL SPECIFICATIONS
| ROTOWRAP W LP AS – Rotating Arm Stretch Wrapping Machine | |
| Carriages | FR: Film stretch with electro-mechanical brake PDS: Double pre-stretch system |
| Machine Characteristics | |
| Arm rotation speed: | 4÷12 rpm |
| Upward/downward carriage speed | 1,6 ÷ 4,4 m/min |
| Power supply voltage | 230 Volt 1 Ph – 50/60 Hz |
| Installed power (Rotowrap W LP AS – FR) | 2 Kw |
| Installed power (Rotowrap W LP AS – PDS) | 2.6 Kw |
| Machine’s height | 3100 mm |
| Machine’s weight (Rotowrap W LP AS – FR) | 560 Kg |
| Machine’s weight (Rotowrap W LP AS – PDS) | 580 Kg |
| Automatic cut and clamp unit | STD |
| Film tail sealer | STD |
| Characteristics of the product to be wrapped | |
| Maximum dimensions (LxW) | 1200 x 1200 mm |
| Maximum useful height: | 2000 mm |
| Film spool characteristics | |
| Max. external diameter (D): | 300 mm |
| Film spool height (h): | 500 mm |
| Film thickness: | 17-35 µm |
| Internal diameter (d): | 76 mm |
| Max. weight: | 20 kg |
