Technoplat 2000
Description

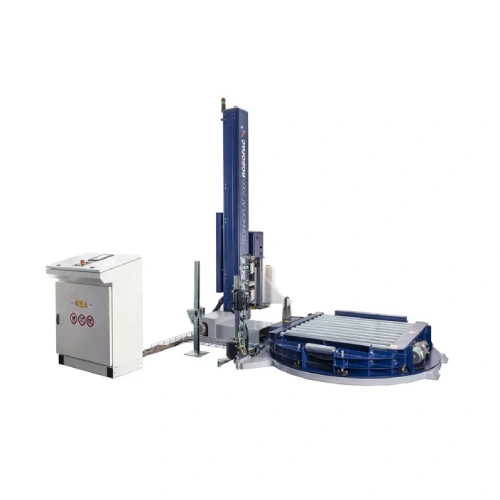

Technoplat 2000 is a high-performance, highly automated wrapping station for an end-of-line packaging. The design, materials and dedicated software applied to developing this in-line wrapping machine are based on the highests standards of quality and safety.
Product Description
Technical Features
| Turntable diameter | mm | 1800 |
| Max load weight | kg | 1500 |
| Turntable speed | rpm | 5÷15 |
| Variable rolls speed | m/min | 8÷11 or 12÷15 |
| Carriage up-down speed | m/min | 1,5÷5,5 |
| Maximum product dimensions (LxW) | mm | 1200×1000 |
| Maximum product height | mm | 2400 std. 2800/3100 opt. |
| Working height | mm | 400÷550 |
| Film carriage type | PDS, PVS | |
| Film stretch | adjustable from panel | |
| Film pre-stretch | fixed 250% std (PDS), variable 150-400% (PVS) | |
| Forklifting | front and rear | |
| Power supply voltage | V | 230 V 1Ph + N |
| Power supply frequency | Hz | 50/60 |
| Installed power | kW | 4 (PDS) 4,3 (PVS) |
| Max reel dimensions | mm | 500×300 |
| Max reel weight | kg | 20 |
| Film thickness | μm | 17÷35 |
