The automatic Technoplat machines represent the innovative and flexible solution to fully automatic pallet wrapping. The operator places the load on the turntable, stars -off cycle by remote con trol and, after having accomplished the wrapping cycle in an automatic manner, removes the pallet. The innovative Film Clamping & Cutting Unit with integrated spread ensures accurate hooking; full respect of the safety rules is guaranteed in every operating condition.

The pallet can be positioned by fork lift truck or pallet jack and, thanks to the base plate 92 mm. high, Technoplat has a high operating flexibility.

Product Description

DISTINGUISHING MARKS

CLAMPING, CUTTING AND SPREADING SYSTEM
The innovative clamp and cut unit is based on a pneumatic system and delivers high precision and reliable performances by executing each operation step by step. The integrated spreading unit on the CS machines is able to spead the film at the end of each wrapping cycle and ensures the absence of any tail. The clamp unit allows the machine to be always ready for the next cycle. All these operations can run manually.

CONTROL PANEL
The control panel is equipped with a practical alert system that detects and locate where maintenance/action might be needed.

CONTROL DESCRIPTION
A= STOP
B= START
C= RESET
D= CARRIAGE DESCENT
E= PRESSURE UP/DOWN
F= CARRIAGE STOP

PARAMETERS DESCRIPTION
Table rotation speed
Film tensioning
Carriage up/down speed
Film tension upward/downward
Bottom wrap and top wrap
Photocell delay

CYCLE DESCRIPTION
Top sheet cycle
Pressure cycle
4 programs with parameters defined by the operator

FR SPOOL CARRIAGE
Spool carriage with electromagnetic brake on return roller. Stretch tension adjustable from control panel. Brake coupling after cycle start for easy film hooking to pallet base.

REMOTE CONTROL KIT
The CS is equipped with a remote control unit that allows the operator to start the wrapping cycle without getting of the forklift.

TECHNICAL SPECIFICATIONS

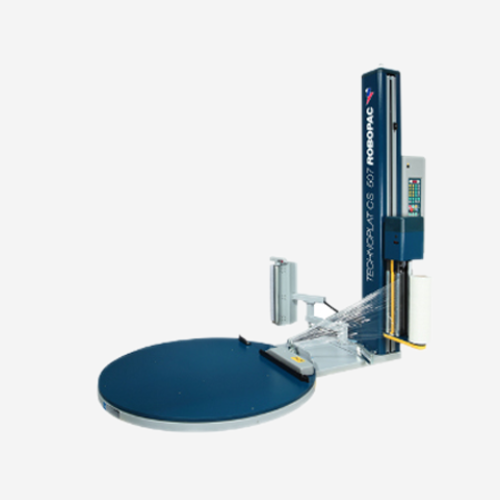

TECHNOPLAT CS 307 FR-Automatic turntable with clamp-cut and spreading unit
Carriages PFR: Film stretch with electro-mechanical brake
Machine Characteristics
Plate diameter 1650 mm
Turntable rotation speed: 4-12 rpm
Forklifting Front and Rear
Power supply voltage 230 Volt 1 Ph – 50/60 Hz
Installed power 2.0 kW
Film stretch control STD
Phase stopping (+/-20 mm)
Soft start STD
Remotely control cycle start STD
Automatic clamp cut and spreading unit STD
Characteristics of the product to be wrapped
Maximum dimensions (LxW) 1000 x 1200 mm
Maximum useful height: 2200 mm
Maximum load weight: 2000 Kg
Film spool characteristics
Max. external diameter (D): 300 mm
Film spool height (h): 500 mm
Film thickness: 17-35 µm
Internal diameter (d): 76 mm
Max. weight: 20 kg
