Wrap-around case packers with case formation and closure in continuous to pack products into cases or into trays.
– possibility to control all machine functions
– easy and precise size change
– high flexibility to handle every kind of container
– machine automatic check-up
– easy maintenance
– high accessibility
– machine solid and reliable
Suitable For The Following Products
|Bottles||(P.E.T. / GLASS / HDPE)|
|Cans||(ALUMINUM / STEEL)|
|Pots||(P.E.T. / GLASS / HDPE)|
|Multipacks||(CLUSTER, FILM, ASTUCCI)|

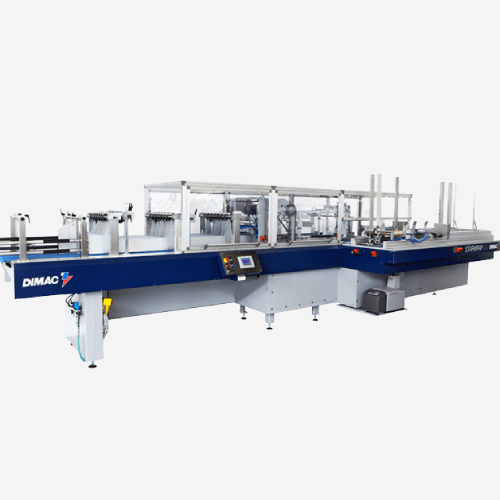

– STARWRAP R25 (up to 25 packs/min) Case packer / Tray
– STARWRAP R25 (up to 25 packs/min) Case packer / Tray + Partitions inserting device groups
BLUE [email protected]È
|STARWRAP R25 25 PPM
(no carton partition inserting device)
|Machine width||Min – Max
|1700 – 2100|
|Min – Max
|66.9 – 82.7|
|Working height||Min Infeed
|1015 – 490|
|39.9 – 19.3|
MULTIPRODUCTS “B.I.” SEPARATION SYSTEM (PATENTED)
Control by means of photocells for correct product position and for minimum product accumulation in each channel. The product is separated in the required configuration by a mesh belt driven by a clutch connected with the main motor of the machine and controlled by the cam programmer.
Size change is achieved electronically and with simple adjustments and hand wheels.
INFEED FOR CARTON PARTITIONS INSERTING
An additional conveyor is added in between the product separation and the machine main body.
On this conveyor each lane is kept, through a special guide rail, at a distance of 15 mm: this space is used to insert the partition pre-positioned into a hopper. The picking-up is made by the product feeding crossbar. In function of the required speed and of the pack configuration, it is possible to insert one or two partitions for each station. The transversal partition is inserted in between each product row after that a separation has been made by an accelerator belt.
PARTITIONS INSERTING DEVICE GROUPS
The groups are adjustable by a hand-wheel in function of the partition dimensions.
The advancement of the partitions is obtained thanks to a little belt which drives a pusher.
The partition thickens is adjustable by two concentric movements which control the exit hopper and the pressure of the accelerator rolls. Both the regulations could be dependent or independent: the partition is picked-up first by a pneumatic device, then by two grooved rolls with an independent drive.
The blank is picked up from the magasine by a device with suction cups and vacuum. The magasine is adjustable and has a high capacity. The blank is lowered and using a mobile mechanical movement comes together with the product.
The case formation is done with a start-stop movement. During this phase, the blank forms a “U” around the product. Then the top side is folded, the internal flaps are closed and the hot melt glue is applied. In the exit station the carton is completed with the folding of the external flaps through pneumatic folders, that also provide the necessary compression.
The closure of the little flap is executed with the upper chain conveyor.
The carton transport in formation is possible thanks to a mechanical indicter, directly connected with the main shaft of the machine.
All parts of the machine above the product level are completely protected and accessible through transparent guards.
All machine functions are controlled by a push button panel equipped with a display which signals all alarms.
