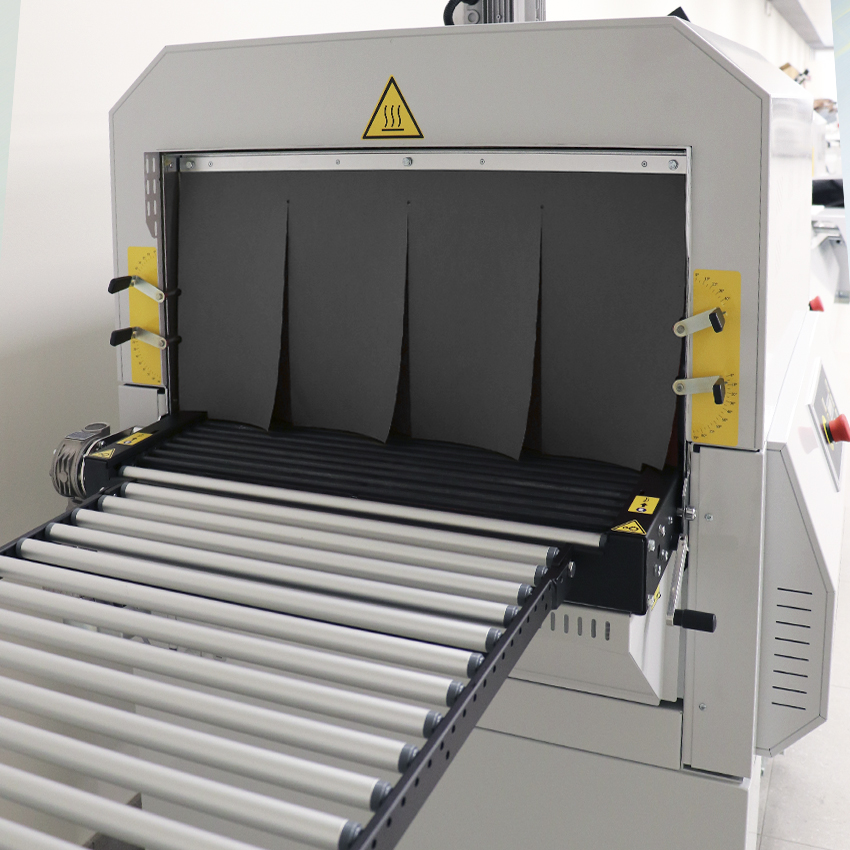

The semi-automatic and automatic “Full Electric” packers with L-sealing system from the FP series are characterized by great quality/price ratio and modularity. All models of this range can indeed be supplied with or without shrink tunnel.
The INOX version of these machines is ideal for meeting the needs of the food industry; it features a stainless steel frame (AISI 304) and is equipped with a conveyor belt in compliance with FDA, UE and USDA regulations for contact with food.
Compared to the traditional L-sealers, the FP series provides higher outputs as well as the possibility of using Polyethylene film, besides the traditional shrink films, and includes different models for outputs ranging up to 3600 packs/hour.
| Power supply | 220 – 240 V |
| 1PH + N + PE | |
| 50/60 Hz | |
| Installed power | 2500 W |
| Sealing bar | 560 x 430 mm |
| Maximum pack height | 230 mm |
| Speed of conveyors | 19 m/min |
| Output up to | 1500 pph ** |
| Maximum size of film reel | 600 – ø 300 mm |
| Machine size | 2010 x 790 mm |
| h 1050 mm | |
| Machine net weight | 148 Kg |
| Usable Films: PVC, Polyolefins and Polyethylene | up to 50 µ |
| Power supply (Alt Model) | 220 – 240 / 380 – 415 V |
| 3PH + PE / 3PH + N + PE | |
| 50/60 Hz | |
| Installed power (Alt Model) | 3350 W |
| Sealing bar (Alt Model) | 640 x 510 mm |
| Maximum pack height (Alt Model) | 200 mm |
| Speed of conveyors (Alt Model) | 10 – 30 m/min |
| Output up to (Alt Model) | 3600 pph ** |
| Maximum size of film reel (Alt Model) | 600 – ø 350 mm |
| Machine size (Alt Model) | 2175 x 1875 mm |
| h 1525-1665 mm | |
| Machine net weight (Alt Model) | 660 Kg |
| Usable Films: Polyolefin and Polyethylene | Polyethylene from 15 to 60 µ (option sealing bar for PE) |
| Film thickness | up to 30 µ |
(**) Packs per hour. The stated speed can change according to the product size, the pack collation and the type of film used.
