Brochures

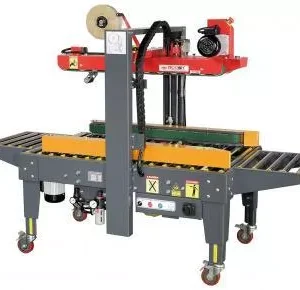

- AUC: Automatic Adjustment Side Drive
- Operation flexibility with regular and memory modes.
- Suitable for many different box sizes,
- Robust design, Easy to operate, Easy maintenance
- Made in Taiwan, Quality assurance.
Product Description
Specifications
| Power | 1 Phase, 110/220V, 50/60Hz |
| Tape Head | C-1 |
| OPP | 2″/ 3″ ( Please advise when ordering) |
Min.Sealing Size (LxWxH) | 2″OPP: > 300 x 200 x 150 (mm) > 11.8 x 7.9 x 5.9 (in) 3″OPP: > 300 x 225 x 150 (mm) > 11.8 x 8.9 x 5.9 (in) |
Max.Sealing Size (LxWxH) | 2″OPP: ∞ x 500 x 500 (mm) ∞ x 19.7 x 19.7 (in) 3″OPP: ∞ x 500 x 500 (mm) ∞ x 19.7 x 19.7 (in) |
| Tape overlap | 2′ OPP: 60±5 (mm) 2.4±0.2 (in) 3′ OPP: 40±5 (mm) 1.6±0.2 (in) |
| Working table height | 550~810 (mm) 21.7~31.9 (in) |
| Max. loading weight | 50 (kg) 110 (lb) |
| Capacity | 8 boxes/min. For box length 300mm (Belt speed 20 M/min) |
| Net Weight | 245 (kg) 540 (lb) |
Machine Size (LxWxH) | 1319 x 933 x 1316~1576 (mm) 52 x 36.7 x 51.8~62 (in) |
Features
Mechatronic Aspect:
- Programmable Logic Controller (PLC)
- Regular mode (random case sizes)
- Memory mode (uniform case sizes)
- Equipped with a search height sensor
Mechanical Aspect:
- Dual-side compression rollers
- Top mast with cushion to prevent case jamming
- Roller table
Applications
Options:
Mechatronic Aspect:
- 60 sec. Auto-stop (power saver).
- 3 phase, 220/380/415/440V.
Mechanical Aspect:
- Extension roller table L370/500xW530mm.
- Tape overlap 70±5mm.
- Tape overlap 95±5mm.
- Customize sealing size.
- Outside diameter of OPP Tape is 340mm (13.5″)
System Aspect:
- It could combine with a case erector or a case strapper.
Special Needs:
- Stainless steel structure SUS #304.
