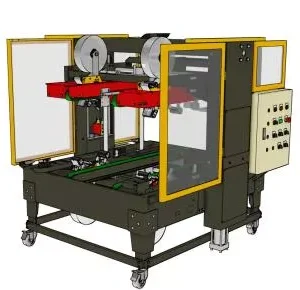

Carton PW-566EG is a dependable and efficient carton sealing machine designed to streamline packaging operations. It provides consistent, high-quality sealing for a wide range of carton sizes, ensuring secure packaging and reduced manual effort. With its sturdy construction and reliable performance, PW-566EG offers an excellent price-to-performance ratio, making it a smart choice for businesses aiming to improve productivity and packaging quality.
Product Description
Specifications
| Power Supply | 3 Phase, 220/380/415/440V |
| Air Supply | 6kgf/cm2 (137.64L/min.) 85.3 lb/in2 |
| Tape Head | C-1 |
| OPP | 3″ (Please advise when ordering) |
| Min. Sealing Size (LxWxH) | 300 x 250 x 150 (mm) 11.8 x 9.8 x 5.9 (in) |
| Max. Sealing Size (LxWxH) | 600 x 500 x 500 (mm) 27.6 x 19.7 x 19.7 (in) |
| Tape overlap | 40±5 (mm) 1.6±0.2 (in) |
| Working table height | 670~830 (mm) 24.8~34.3 (in) |
| Max. loading weight | 40 (kg) 88 (lb) |
| Capacity | approx. 5 cartons/min.(20M/min.) |
| Net Weight | 404 (Kg) 891 (lb) |
| Machine Size (LxWxH) | 1693 x 1630 x 1658~ 1818 (mm) 66.7 x 64.2 x 65.3~71.6 (in) |
Features
- Suitable for different box sizes,
- Reliable, easy to operate.
Applications:
OPTIONS:
Mechatronic Aspect:
- 60 sec. auto-stop
- Detection for no tape, sealing failure, tape not cut off
Mechanical Aspect:
- Infeed push-carton conveyor
- Outfeed power roller conveyor
System Aspect:
- Combine with a carton erector, or strapping machine
Special Needs:
- Stainless steel structure SUS #304
