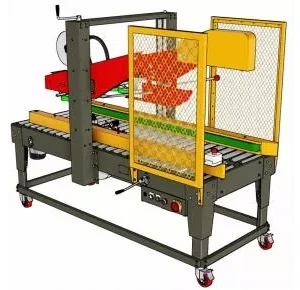

- Flap Folding Carton sealer for uniform cartons
- Automatic close and seal the flaps
- Robust machine
- Suitable for general type of boxes
Product Description
Specifications
| Power supply | 1 Phase, 110/220V, 50/60Hz |
| Air Supply | 6kgf/cm (137.64L/min.) 85.3 lb/in2 |
| Tape Head | C-1 |
| OPP | 2″/3″ (Please advise when ordering) |
| Min.Sealing Size (LxWxH) | 2′ OPP: >200 x 120 x 110 (mm) >7.9 x 4.7 x 4.3 (in) 3″ OPP: >200 x 145 x 110 (mm) >7.9 x 5.7 x 4.3 (in) |
| Max.Sealing Size (LxWxH) | 2′ OPP: 600 x 500 x 500 (mm) 23.6 x 19.7 x 19.7 (in) 3″ OPP: 600 x 500 x 500 (mm) 23.6 x 19.7 x 19.7 (in) |
| Tape Overlap
| 2′ OPP: 60±5 (mm) 2.4±0.2 (in) 3′ OPP: 40±5 (mm) 1.6±0.2 (in) |
| Working Table Height | 550~810 (mm) 21.7~31.9 (in) |
| Max loading weight | 30 (kg) 66 (lb) |
| Capacity | 11 boxes/min. *Depends on the carton quality and size |
| Net Weight | 310 (kg) 683 (lb) |
| Machine Size (LxWxH) | 2086 x 1002 x 1551~1916 (mm) 82.1 x 39.4 x 61~75.4 (in) |
Features
- Suitable for Tall/Slim boxes.
- Mechanical Aspect:
- Pneumatic flap folding
- Both side compression rollers
- Top mast with cushion
- Roller table
- Casters with brake
- Manual adjustment for different box sizes
Applications
Options:
Mechatronic Aspect:
- 60 sec. Auto-stop (power saver).
- 3 phase, 220/380/415/440V.
Mechanical Aspect:
- Extension roller table L370/500xW530mm.
- Tape overlap 70±5mm.
- Tape overlap 95±5mm.
- Customize sealing size.
- Outside diameter of OPP Tape is 340mm (13.5″)
System Aspect:
- It could combine with a case erector or a case strapper.
Special Needs:
- Stainless steel structure SUS #304.
