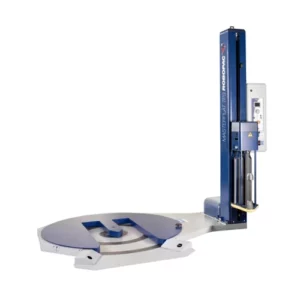

Masterplat Plus Tp3

Masterplat Plus TP3 is designed to meet the needs of customers with varying production requirements, offering the perfect balance of price, performance, and long-term reliability. Its advanced features and robust build make it ideal for medium to high-volume wrapping operations. With Masterplat Plus TP3, you get consistent results, maximum efficiency, and a machine that adapts to your production demands.

Product Description

The Masterplat Plus TP3 is designed to combine advanced technology with user-friendly operation, ensuring reliability and efficiency in every packaging cycle. Equipped with an innovative control panel, it offers six customizable working programs that manage all machine functions automatically, including precise adjustment of sealing time to prevent overheating and ensure consistent results.

Its robust stainless-steel chamber ensures durability and easy cleaning, making it perfectly suited for food industry applications where hygiene is essential. The machine is fitted with a standard shrinking magnet for flawless sealing, while the adjustable impulse blade and integrated security thermostat with warning signals guarantee safe and efficient operation.

Additional features include a sliding trolley with adjustable working surface, motorized film winder, and a micro-puncher system, allowing optimal packaging results. The Masterplat Plus TP3 offers two modes of operation—sealing only or sealing with shrinking—providing versatility to meet diverse packaging needs.

In an era where businesses seek cost-effective, practical, and quick packaging solutions for small and medium-sized products, the Masterplat Plus TP3 delivers outstanding flexibility and performance. Its wide range of functions makes it the ideal solution across multiple industries.

SpecificationUnitMasterplat Plus TP3
Turntable diametermm1500 (std.), 1650 / 1800 (opt.)
Max load weightkg1200 (std.), 1500 (opt.)
Turntable speedrpm5 ÷ 12
Carriage up-down speedm/min1.4 ÷ 4
Maximum product dimensions (L×W)mm800×1200 (std.), 1000×1200 / 1200×1200 (opt.)
Maximum product heightmm2200 (std.), 2400 / 2800 / 3100 (opt.)
Film carriage typeFRD, PGS
Film stretchManual (FRD), Adjustable from panel (PGS)
Film pre-stretchn.a. (FRD), Fixed 250% (std.) (PGS)
ForkliftingRear
Power supply voltageV230 (1Ph)
Power supply frequencyHz50 / 60
Installed powerkW1.5 (FRD) / 1.9 (PGS)
Max reel dimensions (Hר)mm500×300
Max reel weightkg20
Film thicknessμm17 ÷ 35
