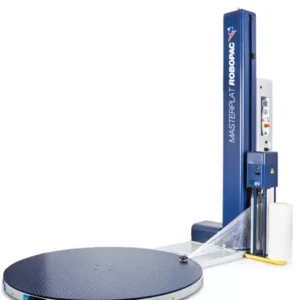

Masterplat Plus

The Masterplats are the latest range of Turntable Pallet Wrappers from Robopac. Designed using the best features from the Ecoplats with the performance of the Rotoplats.

Product Description

The Masterplat Plus is designed to provide the perfect balance of performance, reliability, and ease of use for stretch wrapping applications. Engineered with a durable turntable and robust frame, it delivers secure and consistent wrapping cycles for a wide range of palletized loads.

Its intuitive control panel offers multiple pre-set wrapping programs and full customization of parameters such as film tension, carriage speed, and rotation speed—allowing for maximum flexibility and optimized film consumption.

The Masterplat Plus ensures high productivity while minimizing material waste and labor effort. Its user-friendly interface, programmable memory settings, and smooth operation make it an ideal solution for businesses seeking cost-effective, professional pallet wrapping.

Built for long-term reliability, the Masterplat Plus is the perfect choice for operations that require consistent, secure, and efficient load stabilization across diverse industries.

Technical Features

Turntable diametermm1650 std. 1800 opt.
Max load weightkg2000 std. 2500 opt.
Turntable speedrpm5÷12
Carriage up-down speedm/min1,4÷4
Maximum product dimensions (LxW)mm1000×1200 std. 1200×1200 opt.
Maximum product heightmm2200 std. 2400/2800/3100 opt.
Film carriage type FRD, PGS
Film stretch manual (FRD), adjustable from panel (PGS)
Film pre-stretch n.a. (FRD), fixed 250% std. (PGS)
Forklifting front and rear
Power supply voltageV230 V 1Ph
Power supply frequencyHz50/60
Installed powerkW1,5 (FRD) / 1,9 (PGS)
Max reel dimensionsmm500×300
Max reel weightkg20
Film thicknessμm17÷35
