Characteristics

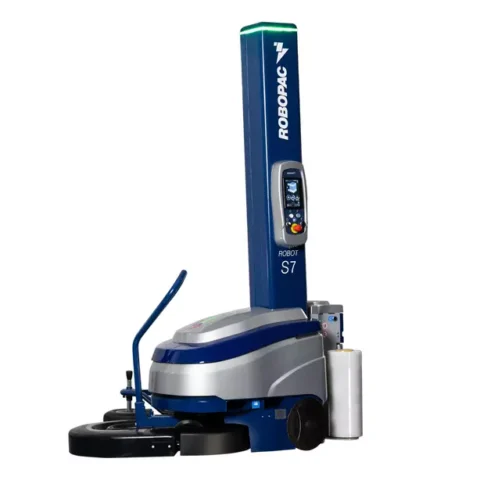

Robot S7

Thanks to the experience gained over time, Robopac presents a new range of self-propelled packaging machines, Robot S7. The use of advanced technologies and of the utmost attention to safety systems represents the essence of the developing capacity of Robopac. The machine is provided with a high level of packaging autonomy and great work flexibility and built to wrap and stabilize palletized loads of any shape, size and weight, using stretch film. Thanks to the innovative system for facilitated film insertion (ILS) through the opening of the carriage and to the Power Drive technology with brushless motorization, it is possible to control the film with extreme precision, guaranteeing perfect pre-stretching and the lowest consumption of film and energy in view of environmental sustainability.

Product Description
ROBOT S7 FRDROBOT S7 FRROBOT S7 P3GSROBOT S7 PVS
No. of pallets per battery charge>250 (Pb/Acid)>250 (Pb/Acid)>250 (Pb/Acid)>250 (Pb/Acid)
BatteriesN°2 12 V 90 Ah Pb/Acid (std.)
N°1 24 V 50 Ah Lithium (opt.)		N°2 12 V 90 Ah Pb/Acid (std.)
N°1 24 V 50 Ah Lithium (opt.)		N°2 12 V 90 Ah Pb/Acid (std.)
N°1 24 V 50 Ah Lithium (opt.)		N°2 12 V 90 Ah Pb/Acid (std.)
N°1 24 V 50 Ah Lithium (opt.)
Maximum product height2200 std.
2400/2800 opt.		2200 std.
2400/2800 opt.		2200 std.
2400/2800/3100 opt.		2200 std.
2400/2800/3100 opt.
Minimum dimensions (L×W)600×600600×600600×600600×600
Film carriage typeFRDFRP3GSPVS
Film stretchmanualadjustable from paneladjustable from paneladjustable from panel
Film pre-stretchn.a.n.a.0% – 230% ~ 300% (std.)
0% – 150% ~ 250% (opt.)		variable 0–500%
Power supply voltage100–240 V (1Ph) 50/60Hz100–240 V (1Ph) 50/60Hz100–240 V (1Ph) 50/60Hz
