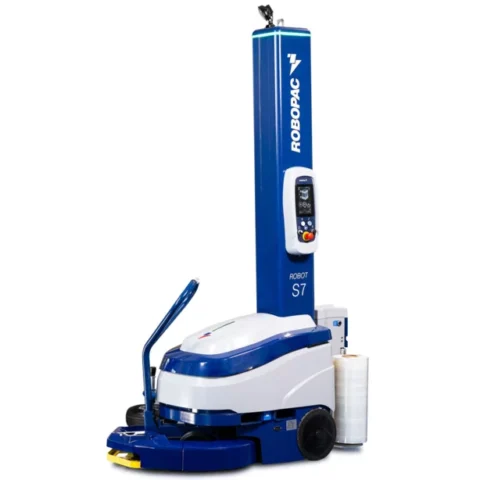

Thanks to the eThanks to the experience gained over time, Robopac presents a new range of self-propelled packaging machines, Robot S7 Stop&Go. The use of advanced technologies and of the utmost attention to safety systems represents the essence of the developing capacity of Robopac. The machine is provided with a high level of packaging autonomy and great work flexibility and built to wrap and stabilize palletized loads of any shape, size and weight, using stretch film. Thanks to the laser scanner, the machine stops instantly when an obstacle is within the safety area. When the laser scanner no longer detects the presence of the obstacle, the machine automatically restarts. This eliminates any possible contact with the operator.xperience gained over time, Robopac presents a new range of self-propelled packaging machines, Robot S7 Stop&Go. The use of advanced technologies and of the utmost attention to safety systems represents the essence of the developing capacity of Robopac. The machine is provided with a high level of packaging autonomy and great work flexibility and built to wrap and stabilize palletized loads of any shape, size and weight, using stretch film. Thanks to the laser scanner, the machine stops instantly when an obstacle is within the safety area. When the laser scanner no longer detects the presence of the obstacle, the machine automatically restarts. This eliminates any possible contact with the operator.
| ROBOT S7 STOP&GO P3GS | ROBOT S7 STOP&GO PVS | |
|---|---|---|
| No. of pallets per battery charge | >300 (Pb/Acid) | >300 (Pb/Acid) |
| Batteries |
N°2 12 V 110 Ah Pb/Acid (std.) N°1 24 V 50 Ah Lithium (opt.) |
N°2 12 V 110 Ah Pb/Acid (std.) N°1 24 V 50 Ah Lithium (opt.) |
| Maximum product height | 2200 std. / 2400/2800/3100 opt. | 2200 std. / 2400/2800/3100 opt. |
| Minimum dimensions (L×W) | 600×600 mm | 600×600 mm |
| Film carriage type | P3GS | PVS |
| Film stretch | Adjustable from panel | Adjustable from panel |
| Film pre-stretch |
0% – 230% ~ 300% (std.) 0% – 150% ~ 250% (opt.) |
Variable 0–500% |
| Power supply voltage | 100–240 V (1Ph) 50/60Hz | 100–240 V (1Ph) 50/60Hz |
| Machine rotation speed | 35–80 m/min | 35–80 m/min |
| Carriage up-down speed | 1.5 ± 5 m/min | 1.5 ± 5 m/min |
| Maximum reel dimensions (H×Ø) | 500×300 mm | 500×300 mm |
| Maximum reel weight | 20 kg | 20 kg |
| Film thickness | 7–35 µm | 7–35 µm |
