Sleeve Wrapper

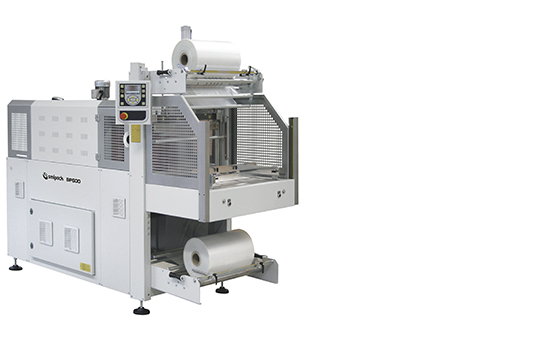

The BP series of monobloc semi-automatic and automatic shrink wrappers with sealing bar stands out for its versatility. Depending on the model, in fact, this range of packaging machines is particularly suitable for packing a very wide range of products belonging to different market sectors in film only or pad + film.

Equipped with 90° or in-line infeed, multi-push system and cutting-edge technology, these machines are perfectly and easily integrated into shrink film packaging lines. The BP Series can reach productions up to 25 packs/minute.

Product Description
Power supply220 – 240 / 380 – 415 V
3PH + PE / 3PH + N + PE
50/60 Hz
Installed power17000 W
Air Pressure6 Bar
Required Air21 Nl/p*
Maximum output up to10 ppm**
Product maximum height380 mm
Sealing bar760 mm
Maximum size of film reel750 x Ø 350 mm
h 1050 mm
Working board height945 – 1105 mm
Machine size2665 x 1410 mm / h 2105 – 2265 mm
Machine net weight605 Kg
Advised film: LDPE20 – 100 µ
