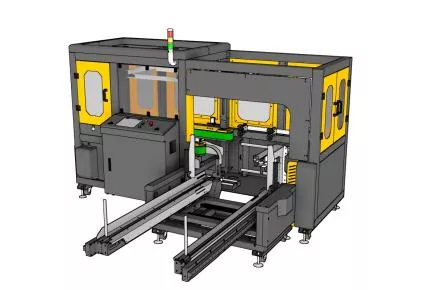

Carton Erector PW-568AHERT

Interested in our Products?

    Carton Erector PW-568AHERT

    Description

    AHERT : Automatic adjustment, high speed, carton erector with bottom tape sealing. Efficient, Reliable.

    • Up to 25 boxes per minute.
    • Fully-Automatic size adjustment to minimize down-time and improve adjustment accuracy
    • Choose between left or right infeed direction styles, to suit you work environment

    Product Description

    Specifications

    Power Supply 3 Phase, 220/380/415/440V
    Air supply 6kgf/cm2  (137.64L/min.)

    85.3 (lb/in2)

    Tape Head C-1
    OPP 2″/3″

    (Please advise when ordering)

    Min. Sealing Size

    (LxWxH)

    200 x 180 x 180(mm)

    7.8 x 7 x 7 (in)

    Max. Sealing Size

    (LxWxH)

    500 x 400 x 500 (mm)

    19.6 x 15.4 x 19.6 (in)

    Tape Overlap



    2’OPP:

    60±5(mm)  2.36±0.2 (in)

    3’OPP:

    40±5(mm)  1.57±0.2 (in)

    Working Table Height 645 (mm)

    25.39 (in)

    Capacity Up to 25 boxes/min.

    *Depends on box quality and size

    Features

    Mechatronic Aspects:

    • PLC control
    • 10” HMI control panel
    • Normal buttons are Start / Stop / Reset / Emergency.
    • Safety fences
    • Detections for sealing failure, low tape volume, low carton volume, and out feed overflow.
    • Servor motor driven for carton size adjustment (Preset memory modes for different carton size).
    • Power driven side belts, speed up to 50 meters per minute.
