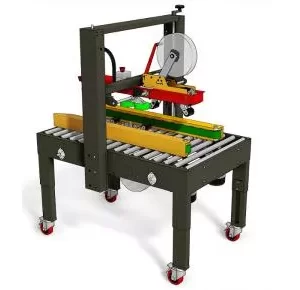

Carton PW-553S Side Drive
Description
Upgrade from manual case-sealing to an automated case-sealing machine with ease using this solution. It offers simple operation and allows for adjustments to the sealing width via a handle on the side and height via a handle on the top. This machine is particularly well-suited for uniform operations involving tall or slim boxes.
- With its robust design, straightforward operation, and ease of maintenance, this machine is a reliable choice.
- Made in Taiwan, you can rest assured that it comes with quality assurance.
Product Description
Specifications
| Power | 1 Phase, 110/220V, 50/60Hz |
| Tape Head | C-1 |
| OPP | 2″/3″
(Please advise when ordering) |
| Min. Sealing Size (LxWxH) | 2′ OPP
>150 x 120x 85 (mm) >5.9 x 4.7 x 3.3 (in) 3″ OPP >150 x 145x 85(mm) >5.9 x 5.7 x 3.3 (in) |
| Max. Sealing Size
(LxWxH) |
2′ OPP:
∞ x 500 x 500 (mm) ∞ x 19.7 x 19.7 (in) 3′ OPP: ∞ x 500 x 500 (mm) ∞ x 19.7 x 19.7 (in) |
| Tape Overlap | 2′ OPP : 60±5 (mm) 2.4±0.2 (in)
3′ OPP : 40±5 (mm) 1.6±0.2 (in) |
| Working Table Height | 570~810 (mm)
22.4~31.9 (in) |
| Max Loading Weight | 30 (kg)
66 (lb) |
| Capacity | 30 boxes/min.
For box length 300mm (Belt speed 20M/min) |
| Net Weight | 148 (kg)
326.3 (lb) |
| Machine Size (LxWxH) | 1280 x 946 x 1396~1761 (mm)
50.4 x 37.2 x 55 ~ 69.3 (in)
|
Features:
Mechanical Aspect:
- Tape-end fix device
- Both side compression rollers
- Top mast with cushion to avoid case jammed.
- Casters with brake
- Manual adjustment for different box sizes
- Roller Table
Applications:
Options：
Mechatronic Aspect:
- 60 sec. auto-stop (power saver)
- 3 phase, 220/380/415/440V
Mechanical Aspect:
- Extension roller table L370/500xW530mm
- Tape overlap 70±5mm
- Tape overlap 95±5mm
- customize sealing size
- Outside diameter of OPP Tape 340mm (13.5″)
System Aspect:
- could combine with case erector, or case strapper
Special Needs:
- Stainless steel structure SUS #304
