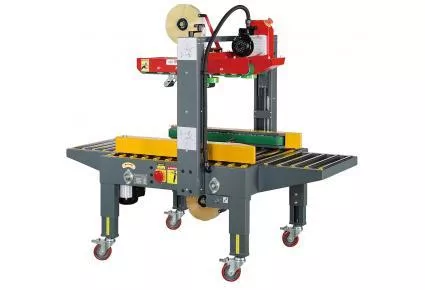

    Carton PW-554TS

    Description

    • TS: Top and Side belts power driven
    • Suitable for Heavier Loads, up to 50 kg (110 lb)
    • Robust Design, Easy to Operate, Easy Maintenance
    • Manufactured in Taiwan, Quality Assurance

    Product Description

    Specifications

    Power 1 Phase, 110/220V, 50/60Hz
    Tape Head C-1
    OPP 2″/3″

    (Please advise when ordering)

    Min.Sealing Size

    (LxWxH)

    2′ OPP:

    >150 x 200 x 120 (mm)

    >5.9 x 4.7 x3.3 (in)

    3″ OPP:

    >150 x 225 x 120 (mm)

    >5.9 x 8.9 x 4.7 (in)

    Max.Sealing Size (LxWxH) 2′ OPP:

    ∞ x 500 x 500 (mm)

    ∞ x 19.7 x 19.7 (in)

    3″ OPP:

    ∞ x 500 x 500 (mm)

    ∞ x 19.7 x 19.7 (in)

    Tape Overlap 2′ OPP: 60±5 (mm) 2.4±0.2 (in)

    3′ OPP: 40±5 (mm) 1.6±0.2 (in)

    Working Table Height 570~810 (mm)

    22.4~31.9 (in)

    Max Loading Weight 50(kg)

    110(lb)

    Capacity 30 boxes/min. For box length 300mm (Belt speed 20M/min)
    Machine Size

    (LxWxH)

    1280 x 946 x 1396~1761 (mm)

    50.4 x 37.2 x 55 x 69.3 (in)

    Features:

    Mechanical Aspect:

    • Driven by Top and Side Belts
    • Equipped with Casters and Brake
    • Top Mast with Cushion to Prevent Case Jamming
    • Roller Table Included
    • Manual Adjustments Available
    • Suitable for All Standard Corrugated Boxes

    Applications:

    Options:

    Mechatronic Aspect:

    • 60 sec. auto-stop (power saver)
    • 3 phase, 220/380/415/440V

    Mechanical Aspect:

    • Extension roller table L370/500xW530mm
    • Tape overlap 70±5mm
    • Tape overlap 95±5mm
    • customize sealing size
    • Outside diameter of OPP Tape 340mm (13.5″)

    System Aspect:

    • could combine with case erector, or case strapper

    Special Needs:

    • Stainless steel structure SUS #304
