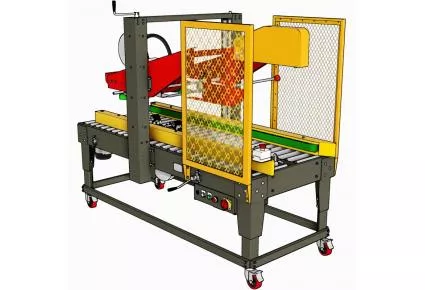

    Carton PW-558F

    Description

    • Automatic Flap Folding Carton Sealer
    • Manual Adjustment for Uniform Carton Boxes
    • Close and Seal Top Flaps
    • Suitable for General Types of Boxes
    • Higher Maximum Loading Height (50kg)

    Product Description

    Specifications

    Power supply 1 Phase, 110/220V, 50/60Hz
    Air Supply 6kgf/cm2 (137.64L/min.)

    85.3 lb/in2

    Tape Head C-1
    OPP 2″/3″ (Please advise when ordering)
    Min.Sealing Size

    (LxWxH)

    2′ OPP:

    >200 x 200 x 110 (mm)

    >7.9 x 7.9 x 4.3 (in)

    3″ OPP:

    >200 x 225 x 110

    >7.9 x 8.9 x 4.3 (in)

    Max.Sealing Size (LxWxH) 2′ OPP:

    600 x 500 x 500 (mm)

    23.6 x 19.7 x 19.7 (in)

    3″ OPP:

    600 x 500 x 500 (mm)

    23.6 x 19.7 x 19.7 (in)

    Tape Overlap



    2′ OPP: 60±5 (mm) 2.4±0.2 (in)

    3′ OPP: 40±5 (mm) 1.6±0.2 (in)

    Working Table Height 550~810 (mm)

    21.7~31.9 (in)

    Max loading weight



    50 (kg)

    110 (lb)

    Capacity 11 boxes/min. For box length 300mm (Belt speed 20M/min)
    Net Weight



    310 (kg)

    683 (lb)

    Machine Size

    (LxWxH)

    2086 x 1002 x 1551~1916 (mm)

    82.1 x 39.4 x 61~75.4 (in)

    Features

    Can Seal a Variety of Different General to Tall/Slim Boxes Thanks to the Top Belt Drive.

    Mechanical Aspects:

    • Pneumatic Flap Folding
    • Both-Side Compression Rollers
    • Top Mast with Cushion
    • Roller Table
    • Casters with Brake
    • Manual Adjustment for Different Box Sizes

    Applications

    Options:

    Mechatronic Aspect:

    • 60 sec. Auto-stop (power saver).
    • 3 phase, 220/380/415/440V.

    Mechanical Aspect:

    • Extension roller table L370/500xW530mm.
    • Tape overlap 70±5mm.
    • Tape overlap 95±5mm.
    • Customize sealing size.
    • Outside diameter of OPP Tape is 340mm (13.5″)

    System Aspect:

    • It could combine with a case erector or a case strapper.

    Special Needs:

    • Stainless steel structure SUS #304.
