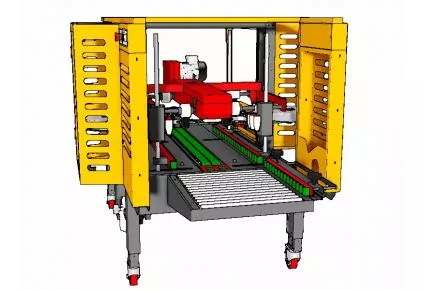

    Carton PW-570A

    Description

    • Automatic Side Sealing Machine
    • Designed for Seafood Esky Boxes
    • Random Sizes

    Product Description

    Specifications

    Power 1 Phase, 110/220V, 50/60Hz
    Tape Head C-1
    OPP 2″ (Please advise when ordering)
    Min. Sealing Size

    (LxWxH)

    2′ OPP:

    >150 x 250 x 180 (mm)

    >5.9 x 9.8 x 7.1 (in)

    Max. Sealing Size

    (LxWxH)

    2′ OPP:

    ∞ x 500 x 500 (mm)

    ∞ x 19.7 x 19.7 (in)

    Tape Overlap 2′ OPP: 60±5 (mm) 2.4±0.2 (in)
    Working table

    height

    600~810 (mm)

    23.6~31.9 (in)

    Max. loading

    weight

    30 (kg)

    66 (lb)

    Capacity 8 boxes/min.

    For box length 300mm (Belt speed 20M/min)

    Net Weight 300 (kg)

    661 (lb)

    Machine Size

    (LxWxH)

    1157 x 1538 x 1370~1580 (mm)

    45.6 x 60.6 x 53.9~62.2 (in)

    Features

    Mechatronic Aspect:

    • The machine automatically adjusts the sealing size, eliminating the need for manual adjustment for different carton sizes.
    • Allows switching between automatic mode and memory mode, reducing downtime in your package production.

    Mechanical Aspect:

    • Easy tape threading.
    • Equipped with a top mast cushion mechanism for a smooth sealing finish.
    • Simple to operate and easy to maintain.

    Applications

    OPTION:

    Mechatronic Aspect:

    •  60 Sec. auto Stop
    •  3 phase, 220/380/415/440V

    Mechanical Aspect:

    •  Extension roller table
    •  Tape overlap 70±5mm
    •  Tape overlap 95±5mm
    •  customize sealing size
    •  Outside diameter of OPP Tape 340mm (13.5″)

    System Aspects:

    •  PW-570A , for random case sizes
    •  In Stainless Steel Structure #304
    •  Combine with carton erector, or strapping machine
