Ecowrap
Ecowrap

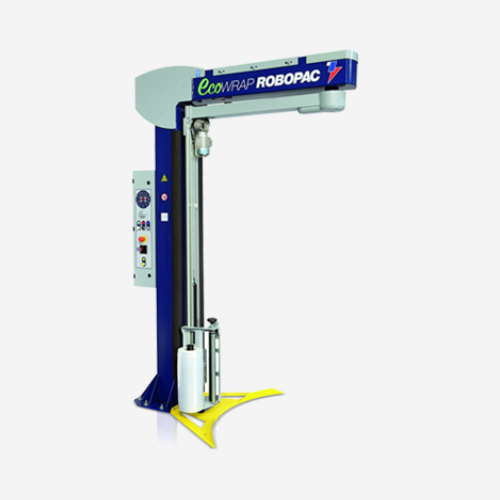

ECOWRAP is a semi-automatic machine with rotating arm ideal for wrapping with stretch film products particularly unstable, the chance ‘to keep the pallet stop and stabilize the product by turning a rotating arm. This machine is the right solution for environments logistics.
Product Description
TECHNICAL SPECIFICATIONS
| ECOWRAP – Rotating Arm Stretch Wrapping Machine | |
| Carriages | FRD:Film stretch with mechanical brake |
| Machine Characteristics | |
| Arm rotation speed: | 7÷11 rpm |
| Upward/downward carriage speed | 2,6 ÷ 6 m/min |
| Power supply voltage | 230 Volt 1 Ph – 50/60 Hz |
| Installed power | 1,9 kW |
| Productivity: | 30 pallets/h |
| Max load weight: | Unlimited |
| Characteristics of the product to be wrapped | |
| Maximum dimensions (LxW) | 1000 x 1200 mm |
| Maximum useful height: | 2200 mm |
| Film spool characteristics | |
| Max. external diameter (D): | 250 mm |
| Film spool height (h): | 500 mm |
| Film thickness: | 9-35 µm |
| Internal diameter (d): | 76 mm with and without core |
| Max. weight: | 6 kg |
LAYOUT
