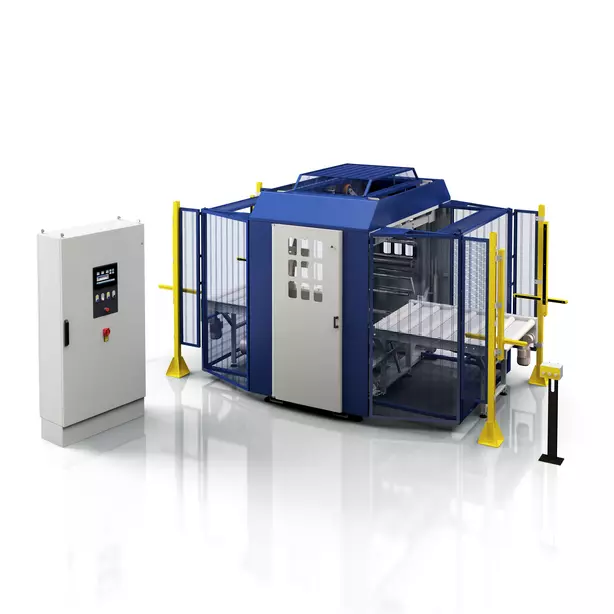

    Orbit 16


    Rotating ring wrapping machine with horizontal axis. Orbit 16 is a rotating ring wrapping machine intended for spiral packaging with stretch film of products with a prevalent development in length, fed according to the longitudinal axis of the machine. The machine is equipped with electro-welded mesh protections designed to ensure the safety of the operator during automatic operation of the machine itself.

    Product Description

    Technical Features

    ring diameter mm 1610
    reel width W mm 250/500
    ring rotation speed rpm max 70 (W=250) max 50 (W=500)
    working pressure bar 6±1
    clamping and cutting unit std
    power supply voltage V 400 V 3Ph + N
    power supply frequency Hz 50/60
    installed power kW 4,7
