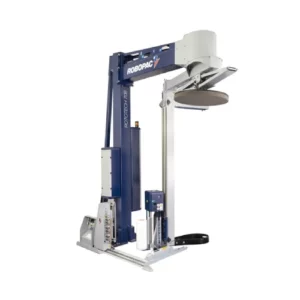

Rototech Cs/Cw
Description
Rototech is the ideal solution for fully automatic wrapping with stretch film of products particularly unstable.
Product Description
Technical Features
| Arm rotation speed | rpm | 7÷12 |
| Carriage up-down speed | m/min | 2,5÷5,5 |
| Maximum product dimensions (LxW) | mm | 1400×1400 |
| Minimum product dimensions (LxW) | mm | 800×600 |
| Maximum product height | mm | 2000 std. 2400/2750 opt. |
| Film carriage type | FR, PDS, PVS | |
| Film stretch | adjustable from panel | |
| Film pre-stretch | n.a. (FR), fixed 250% std. (PDS), variable 150-400% (PVS) | |
| Power supply voltage | V | 230 V 1Ph |
| Power supply frequency | Hz | 50/60 |
| Max reel dimensions | mm | 500×300 std. / 750×300 opt. |
| Max reel weight | kg | 20 |
| Film thickness | μm | 17÷35 |
