Rotowrap C
Rotowrap C
ROTOWRAP is the ideal solution for wrapping stretch film around particularly unstable products. Holding the pallet still and stabilizing the product using a rotating arm is a common necessity for many industries. The ROTOWRAP family offers superior-quality products for end-of-line packing technology with machines of excellent design and manufacture that provide fast and efficient pallet wrapping.
Product Description
TECHNICAL SPECIFICATIONS

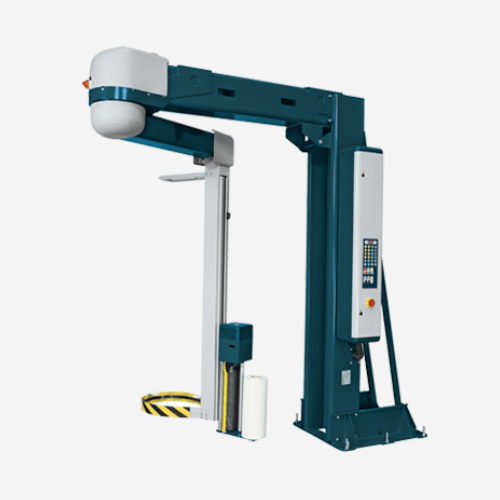

| ROTOWRAP C – Rotating Arm Stretch Wrapping Machine | |
| Carriages | FR: Film stretch with electro-mechanical brake PDS: Double pre-stretch system |
| Machine Characteristics | |
| Arm rotation speed: | 4÷12 rpm |
| Upward/downward carriage speed | 1,6 ÷ 4,4 m/min |
| Power supply voltage | 230 Volt 1 Ph – 50/60 Hz |
| Installed power (Rotowrap C – FR) | 1,5 Kw |
| Installed power (Rotowrap C – PDS) | 1,9 Kw |
| Machine’s height | 3200 mm |
| Machine’s weight (Rotowrap C – FR) | 730 Kg |
| Machine’s weight (Rotowrap C – PDS) | 750 Kg |
| Characteristics of the product to be wrapped | |
| Maximum dimensions (LxW) | 1000 x 1200 mm |
| Maximum useful height: | 2200 mm |
| Film spool characteristics | |
| Max. external diameter (D): | 300 mm |
| Film spool height (h): | 500 mm |
| Film thickness: | 17-35 µm |
| Internal diameter (d): | 76 mm |
| Max. weight: | 20 kg |
