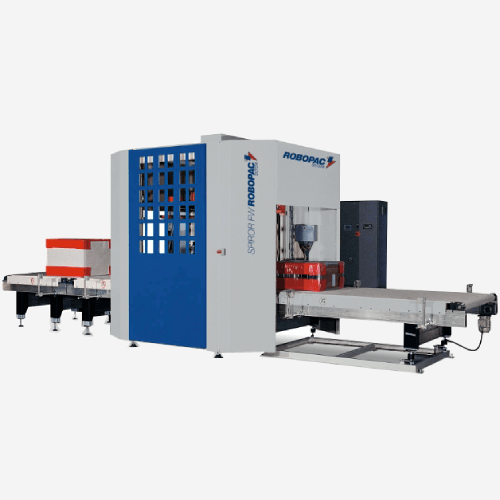

Spiror FW 2500
Spiror FW 2500
Fully automatic rotating ring machine for packaging roofing panels, furniture, flatpacks, cabinets, doors, windows and other long and bulky, unpalletised products.
Maximum rotation speed 85 rpm.
Product Description
TECHNICAL SPECIFICATIONS
| A | C | C | D | ||||||||
| SPIROR | mm | inch | mm | inch | mm | inch | mm | inch | Kg | lbs | Max rotation speed |
| FW 2500 | 3410 | 135″ | 3580 | 141″ | 4295 | 170″ | 850±50 | 33″±2″ | 2.000 | 4.200 | 35 rpm |
LAYOUT
DIMENSIONS
Dimensions of the products to wrap
STRETCH-FILM USABLE
| Outer spool diameter | max 250 mm. (10″) |
| Spool core diameter | 76 mm. (3″) |
| Spool width | 250 / 500 mm. (10″ / 20″) |
| Film width | 17 / 35 µm |
STRETCH-FILM USABLE
Technical drawings of this machine are available ON REQUEST.
