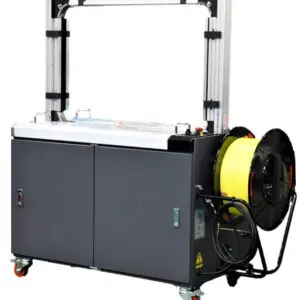

Strapping Machine PW-0860A
Interested in our Products?
Strapping Machine PW-0860A
Description
CAT: Aluminum Arch with Automatic Strap Threading and free roller table.
- Easy operation & Easy maintenance
Product Description
Specifications
| Power Supply | 3 phase , 220/380/415/440V, 50/60Hz |
| Straping Head | Standard Type |
| Arch Size
(WxH) |
850 x 600 (mm)
33.5 x 23.6 (in) |
| Strap band Width
(mm) |
9,12,15,19 |
| Strapping Tension | 0~70 (kg)
0~154.3 (lb) |
| Strapping Speed | 2.4 sec./ strap (25 strap/min.) |
| Max. Load | 20 (kg)
44 (lb) |
| Working table height | 810 (mm)
31.9 (in) |
| Machine Size
(LxWxH) |
1476 x 689 x 1644 (mm)
58.1 x 27.1 x 64.7 (in) |
Features
Mechatronic Aspect:
- Logic Replay circuit
- Belt type Strap Dispenser Brake
- Access doors with safety switches
Mechanical Aspect:
- Mechanical Tension adjustment
- Double cams for long lasting machine operation.
- New generation heating element suitable for PP and PET strap use, requires less initial heating time.
- Reinforced strap feed shooter structure gives much longer operation time before changing it.
Applications
Optional:
Mechatronic Aspect:
- PLC control integration
- Detection for strap feeding not to strap position
- Detection for no strap
- PET strap sealing
- Single Phase 1Ø , 110/220, 50/60Hz
- Enhanced PCB for faster cycle speed. (up to 36 straps per minute)
Mechanical Aspect:
- Pneumatic top press mechanism (Tighter strapping)
- Other arch size made on request
- PET strap
- Dispenser I.D. 9″ (230mm)
- Extension conveyor
- Casters with brake
Special Needs:
- Stainless steel structure SUS #304
