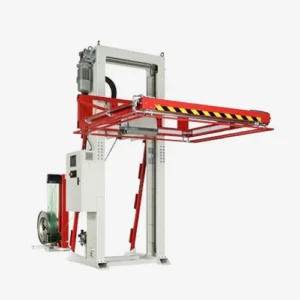

    TP-733H Castor III Pallet Strapping Machine


    • ARES TP-733-SH strapping head
    • Index strapping head
    • Strap guide arm
    • Safety rack
    • Friction weld sealing technology
    • Siemens PLC and HMI
    • Free access to strap guides
    • Swivel dispenser set
    • Adjustable sealing and cooling time
    • Strap end ejector
    • Preprogram setting
    • Easy to replace strapping head

    Product Description

    Technical Data

    Capacity Up to 60 pallets/hour (3 parallel straps)
    Strap Type PP or PET strapping
    Strap Width 12 mm, 15.5 mm, or 19 mm
    Tension Range 1100 – 3200 N (standard)
    200 – 1200 N (optional)
    Minimum Strapping Height (a) With conveyor: 160 mm above conveyor surface
    (b) Without conveyor: 240 mm above floor
    Maximum Package Height Standard: 2,200 mm
    Option: 2,700 mm
    Strap Core Size 406 mm/200 mm/230 mm/280 mm
    Pneumatic Source & Air Consumption 6 bar
    7.1 liter/cycle
    Electrical Requirements 220V, 380V, 400V, 415V 50/60Hz 3PH
